Product
information

Reference

FD-020-241

FD-020-241

Protocols

  • RS485
  • Wiegand

Technologies

  • Mifare Plus
  • Mifare Classic

Download

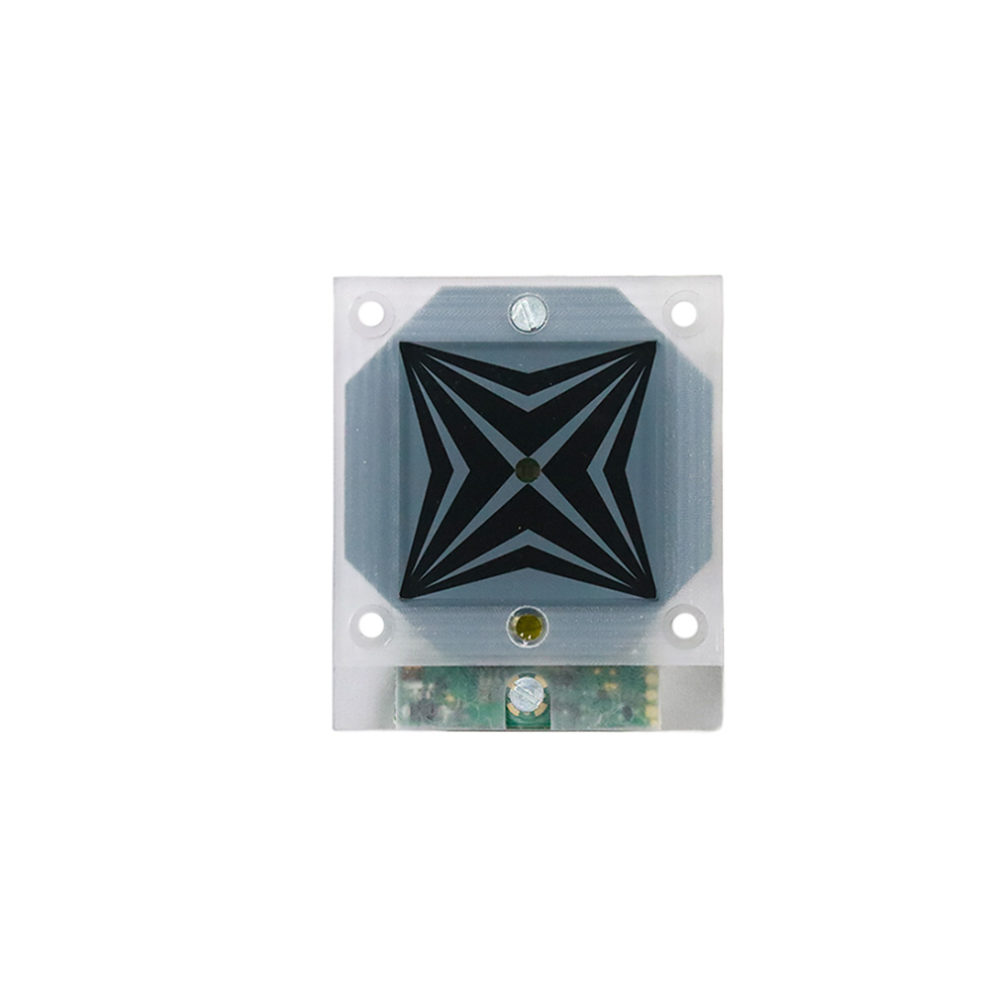

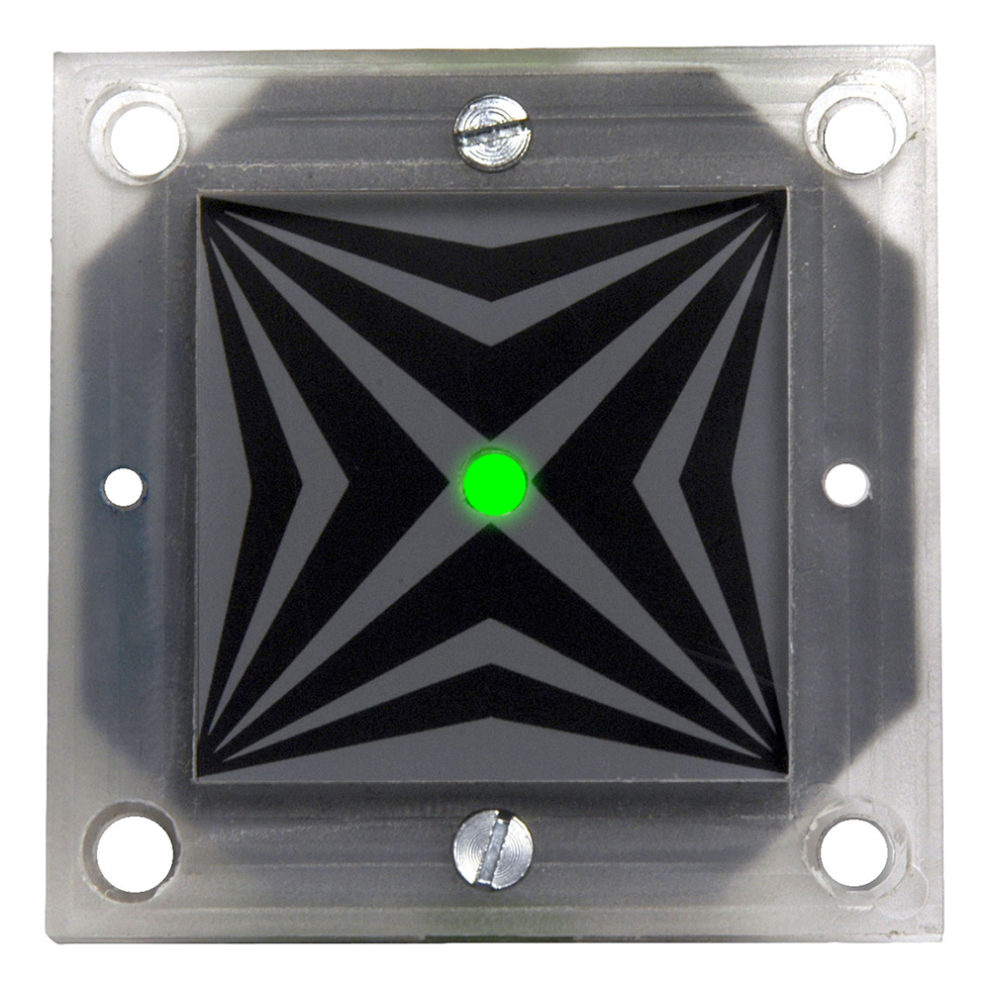

40×40 OEM reader

Description

The FD-020-241 reader is specially designed to be mounted in a 40 x 40 front housing. It has two output protocols. Thanks to a switch, the output switches from Wiegand to RS485.
The RS485 mode is specially developed for iPassan and increases the reader-controller distance to 1,000 m compared to 100 m for Wiegand.
In Wiegand mode, the reader is compatible with a wide array of controllers on the market.
Key/reader security is optimal as FDI Mifare® Plus keys are used. These keys boast production-encoded AES 128 bit security that the Alpha reader checks when reading the key.
Finally, this reader is totally configurable via the web portal https://partner.fdimatelec.com/
The Wiegand output format, the LED behaviour as well as the type and security of the keys/passes to manage is defined on the screen and then encoded in a configuration key/pass that is also secure.
When this configuration key is shown to the reader, the reader integrates the new settings.

Key characteristics

  • Reader compatible with FDI Mifare® Classic and Mifare® Plus (AES 128 bit encryption)
  • Configurable Wiegand protocol
  • Integrated LEDs and buzzer
  • Firmware can be updated remotely in RS485 mode

Power supply

The 40 x 40 OEM reader draws its power supply from the FDI access controller.

Communication

In RS485 mode, the reader two-way communicates permanently (FDI protocol) with the iPassan controller. As such, the controller is real-time aware if the reader is connected as well as its status.
In Wiegand mode, the reader sends a frame to the connected controller as soon as a recognized key/pass is presented.

Updating firmware

Wiegand / RS485 Sinthesi S2 reader firmware can be updated via iPassan Manager software (RS485 mode only).

Technical characteristics

Power supply

Operating voltage: 12V supplied by the controller / or by third-party RS485-mode supply

Outputs

  • Wiegand output: up to 8 wires
  • Max. cable length: 100 metres
  • Frequency: 13.56 MHz (Mifare® Classic and Mifare® Plus)

Read distance

  • Mifare® Classic: up to 30 mm depending on the key/pass
  • Mifare® Plus: up to 20 mm depending on the key/pass

LEDs

  • 3 colors: blue, red and green.
  • Behaviour adjustable via iPassan Manager (RS485)

Temperature

  • Operating: -20°C to 50°C
  • Storage: -20°C to 70°C
  • Humidity : 85 RH max

Size

  • Size (L x l x H) : 60 mm x 60 mm x 16 mm
  • Weight: 52g
