FD-020-230

FD-020-230

Protocols

  • Wiegand

Technologies

  • Mifare Plus
  • Mifare Classic

Download

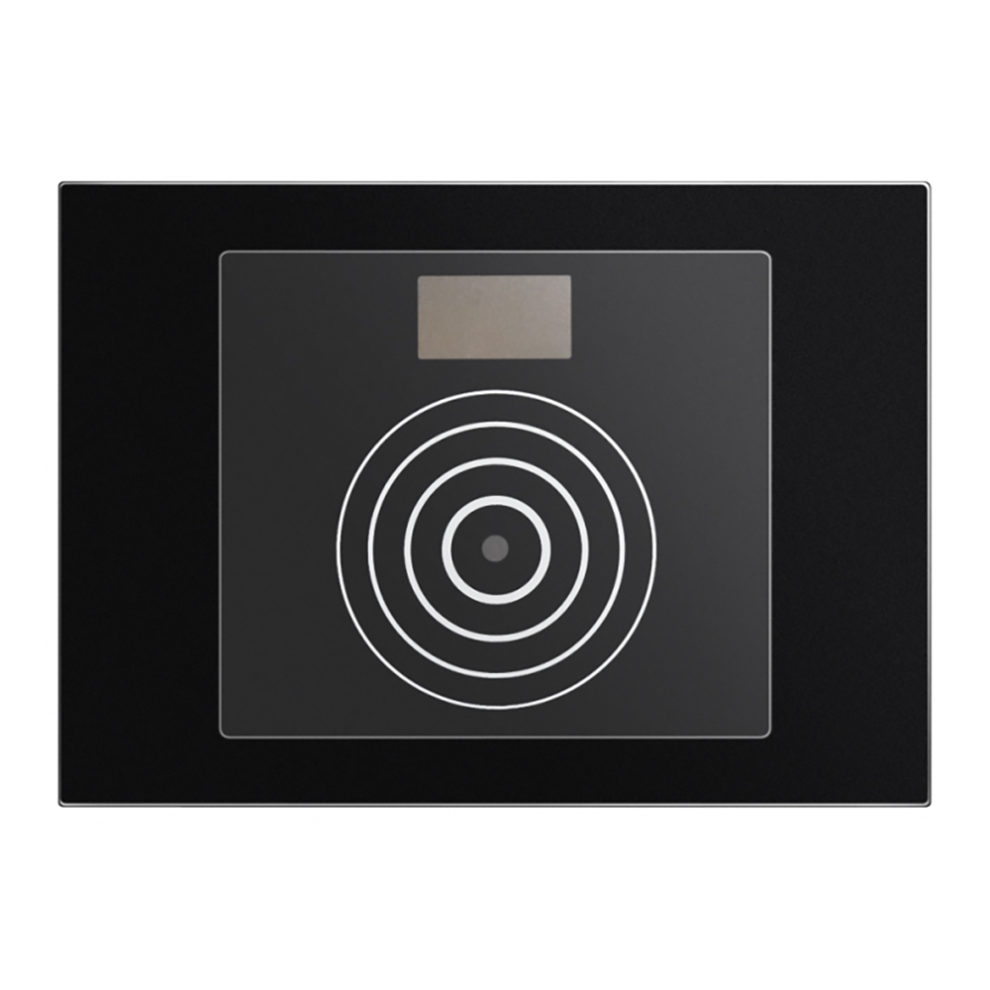

Alpha reader

Description

The FD-020-230 Alpha reader is a dual-protocol reader. Thanks to a switch, the output switches from Wiegand to RS485.
The RS485 mode is specially developed for iPassan and increases the reader-controller distance to 1,000 m compared to 100 m for Wiegand.
In Wiegand mode, the reader is compatible with a wide array of controllers on the market.
It is designed to integrate the Urmet Alpha modular door entry panel system.
Key/reader security is optimal as FDI Mifare® Plus keys are used. These keys boast production-encoded AES 128 bit security that the Alpha reader checks when reading the key.
Finally, this reader is totally configurable via the web portal https://partner.fdimatelec.com/
The Wiegand output format, the LED behaviour as well as the type and security of the keys/passes to manage is defined on the screen and then encoded in a configuration key/pass that is also secure.
When this configuration key is shown to the reader, the reader integrates the new settings.

Key characteristics

  • Reader default-compatible with FDI Mifare® Classic and Mifare® Plus (AES 128 bit encryption)
  • Configurable Wiegand protocol
  • Integrated LEDs and buzzer
  • Firmware can be updated remotely in RS485 mode

Power supply

The Alpha reader draws its power supply from the FDI access controller.

Communication

In RS485 mode, the reader two-way communicates permanently (FDI protocol) with the iPassan controller. As such, the controller is real-time aware if the reader is connected as well as its status.
In Wiegand mode, the reader sends a frame to the connected controller as soon as a recognized key/pass is presented.

Technical characteristics

Power supply

Operating voltage: 12V supplied by the controller via the 2 wires

Outputs

  • Wiegand output: up to 8 wires
  • RS485 output: 2 power supply wires + 3 bus wires
  • Max. cable length: 100 metres (Wiegand) / 1,000 m (RS485)
  • Frequency: 13.56 MHz (Mifare® Classic and Mifare® Plus)

Read distance

  • Mifare® Classic : Up to 40 mm

LEDs

  • 3 colors: blue, red and green.
  • Behaviour adjustable via iPassan Manager

Temperature

  • Operating: -20°C to 50°C
  • Storage temperature: -20°C to 70°C
  • Humidity : 85 RH max

Size

  • Size (L x l x H) : 125 mm x 90 mm x 26 mm
  • Weight: 150g
