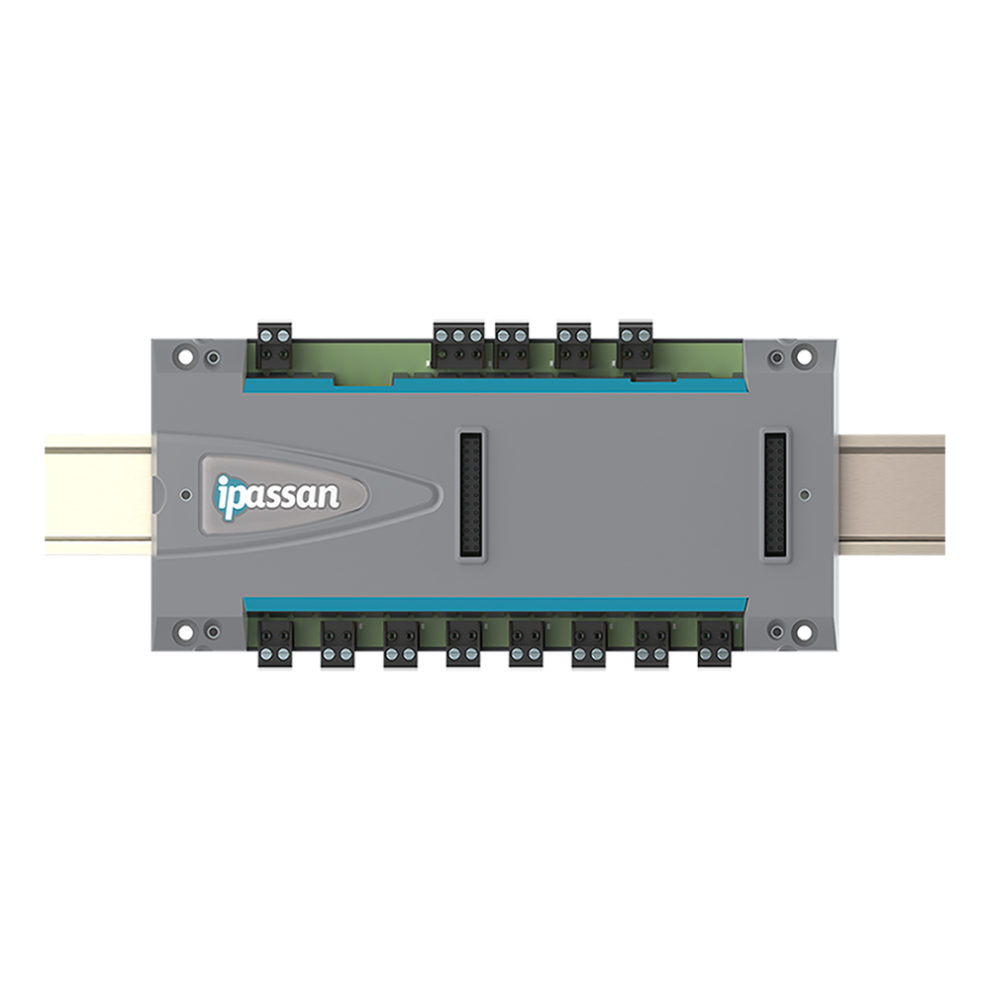

iPassan 10-input module

Description

This module allows the management of 10 inputs and is connected to the iPassan central unit via the RS485 bus.
A maximum of 10 input modules can be connected, giving a maximum total capacity of 220 inputs.
This module facilitates the management of additional peripherals and the value of the end-of-line resistors can be defined in the system.

Key characteristics

  • 10 inputs with EOL resistors
  • Can be easily complemented by the 12-input extension card.
  • Perfect for controlling additional devices (sensor, fire alarm, etc.)
  • LED indicators showing input status
  • Secure RS485 communication
  • Online and remote scalable firmware
  • Designed for wall-mounting or for standard DIN Rail mounting
  • Grey-coloured to recognize the product quickly in relation to the black iPassan base controllers

The 10-input module operates with a 12/24 V AC/DC power supply. When it is used inside the metal iPassan housing, it can share the same power supply as the controller.

The iPassan-proposed input solution can be easily and cost-effectively extended and offers an additional advantage of:

  • 10 inputs to use in any programmable input
  • When complemented by the 12-input extension card, it can reach a total capacity of 22 inputs per module. 10 complete modules in the same RS485 row can control 220 inputs
  • Additional devices easy to monitor
  • 1 12VDC 200mA output to power any additional devices
  • The input module address is configured by entering the device number in the software

RS485 communication is used for communicating with the controller or interconnection with other input/output modules

The iPassan 10-input module firmware can be updated via the base controller using iPassan Manager software.

Technical characteristics

Operating voltage: 12/24V AC/DC

RS485: communication to the central unit or to other I/O modules

EOL management: 10 inputs (resistor value adjustable in the software)

The following resistor values are included:

  • R1 (serial) value = 4.7kΩ
  • R2 (parallel) value = 10kΩ

  • Operating: -20°C to 50°C
  • Storage temperature: -20°C to 70°C
  • Humidity : 85 RH max
  • Size (L x l x H): 200 mm x 90 mm x 34 mm (210 mm x 145 mm x 65 mm with cover).
  • Weight: 247g
