Description

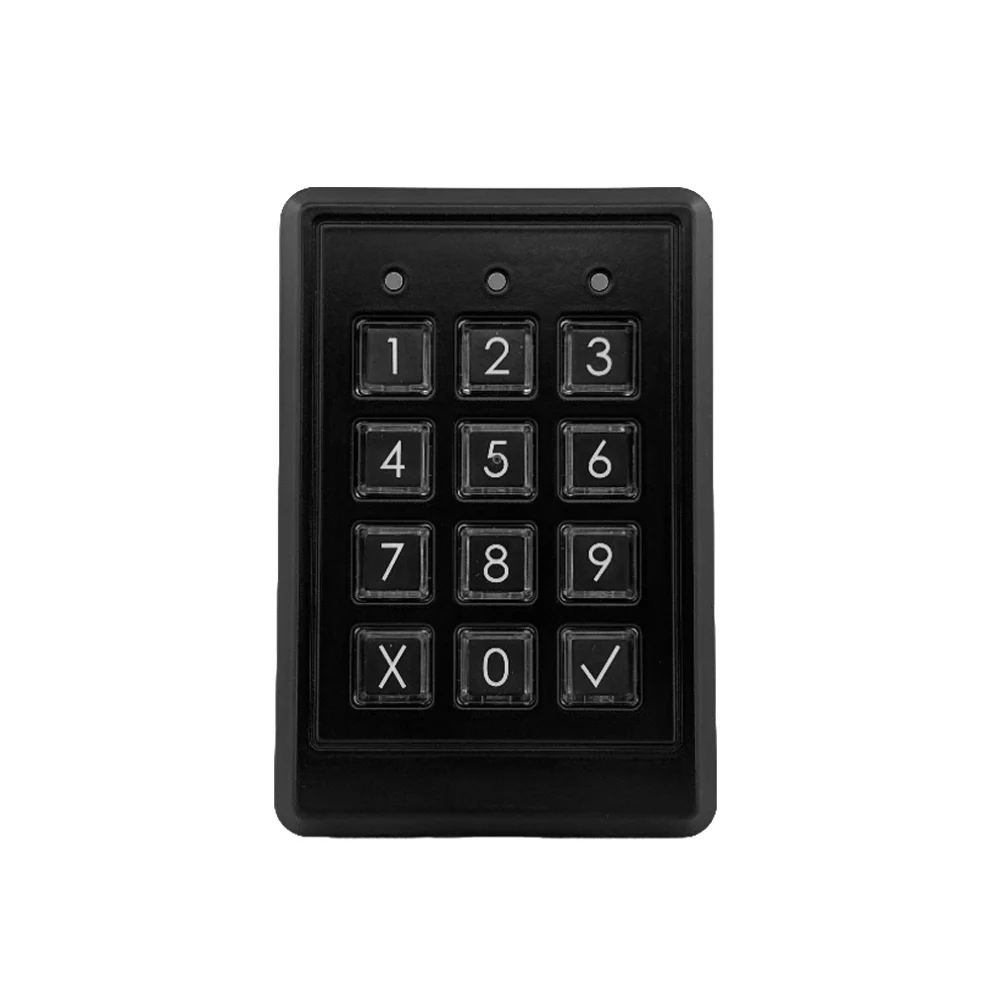

FDI black Zamak coded keypad offers a robust and aesthetic security solution, allowing door to be opened for residents. Designed in a high-resistance alloy to withstand demanding environments, this equipment ensures increased durability and optimal protection against vandalism.
Wiring remains simple and quick: two wires for the lock release, two wires for the power supply, and two wires for the push-button.
Main Characteristics
- Dimensions: 110 mm x 75 mm x 22.5 mm
- Material: Zamak (high-resistance anti-vandal alloy), black finish.
- Packaging: Optimized packaging for facilitated commercialization and a neat presentation.
- Security: 2 door relays NO/NC + tamper switch.
- Applications: Keypad designed for automation applications (alarms, gates, residential access control).
- Capacity: 100 access codes from 3 to 8 digits.
- Signaling: Three status LEDs (yellow for the keypad, green, and red) and integrated buzzer.
- Time delay: 1 to 99 seconds (monostable or bistable mode).
- Configuration: Master code programming.
- Ease of use: Blue backlit keys.
- Inputs: Push-button to relay 1 and clock input for time schedule management.
- Power supply: 12-24 VAC/DC.
- Protection rating: IP65.
- Operating temperature: -20°C to +60°C.
