Product
information

Reference

FD-020-122

Protocols

  • Wiegand

Technologies

  • Mifare Classic

Download

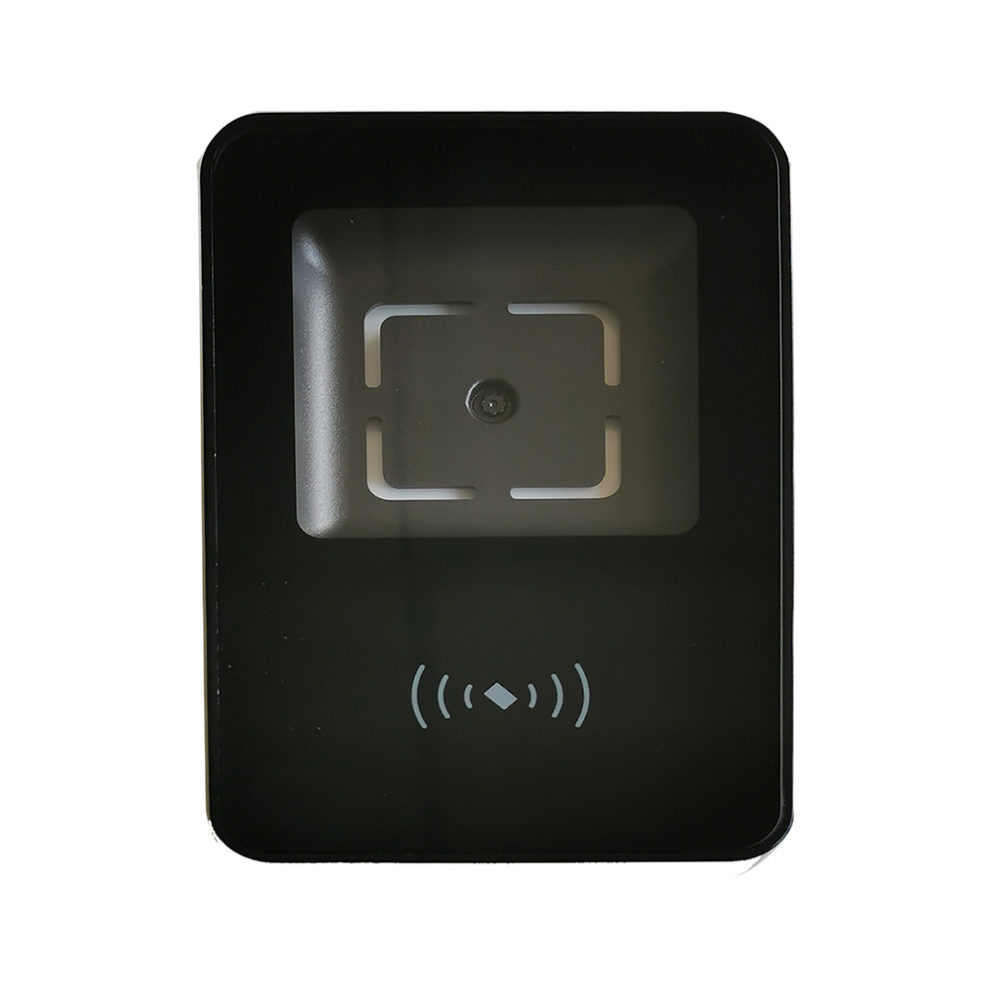

QR Code reader

Description

The FD-020-122 QR Code reader is a dual-technology reader. It can read classic Mifare keys/passes as well as QR codes.
Standard users can use a proximity key whenever visitors will use a QR code for example.
This reader has a Wiegand output, which means it can only be used with Wiegand iPassan access controllers.
It is programmed using a configuration QR code.
Important: this reader is designed for indoor use only. It is not compatible with Mifare® Plus keys/ passes or cards.

Key characteristics

  • Power supply: 12 Vdc supplied by the controller
  • Consumption: up to 150 mA
  • Operating temperature: -20°C to 60°C
  • Storage temperature: -20°C to 80°C
  • Humidity: 5% to 95%
  • Cable length: up to 100 m between the reader and the controller
  • 34-bit Wiegand output
  • Size (L x l x H): 132 mm x 88 mm x 21 mm
  • Weight: 200g

Installation

The QR Code reader is supplied with housing. This is attached to the wall by 2
screws; the reader can be inserted inside the housing (top part first).
Attach the reader with the bottom screw (supplied).
