Product
information

Reference

FD-020-186

Protocols

  • Wiegand

Technologies

  • Mifare Classic

Download

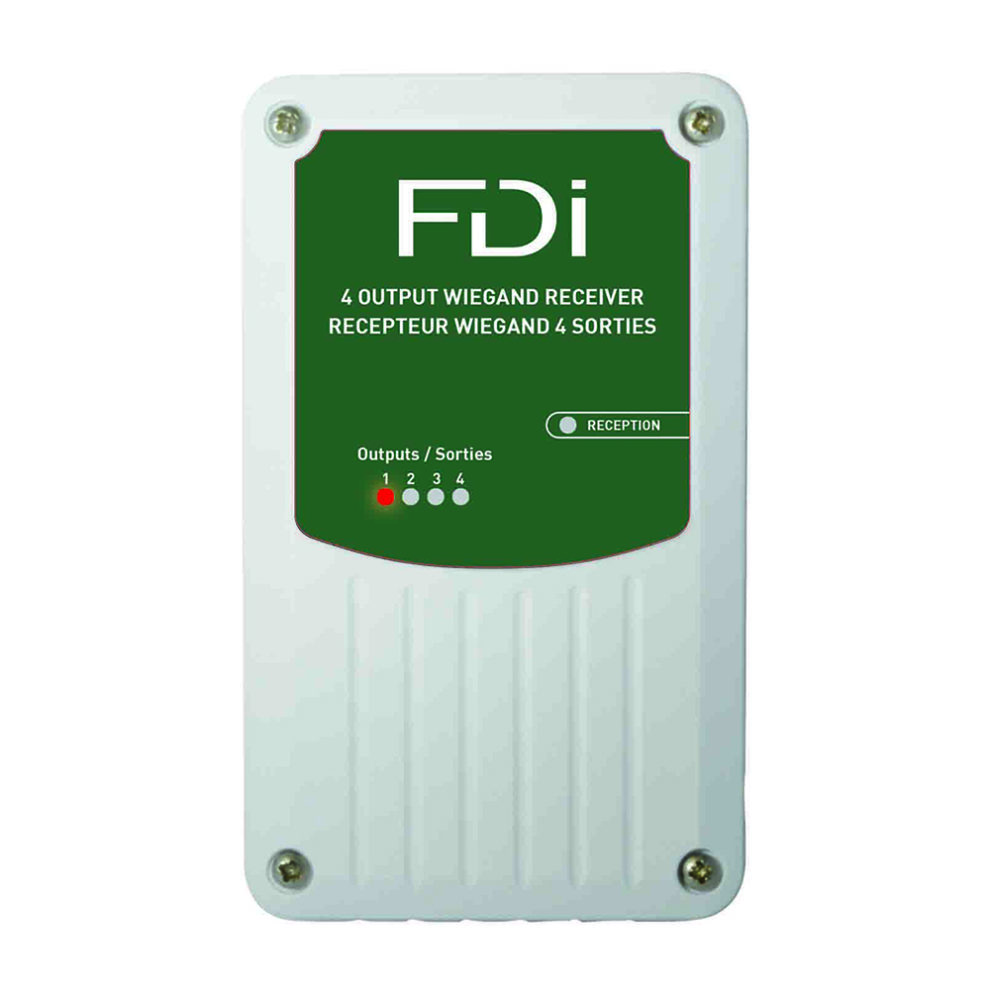

868 MHz – Wiegand – HF receiver

Description

This 868 MHz HF receiver is designed to work with controllers on the market supporting FDI 34-bit Wiegand protocol.
It hosts 4 Wiegand outputs and is compatible with the following bi-technology remote controls:

  • TELROL (Mifare® 13.56 MHz tag included) / 868 MHz

When the user presses key 1 on their remote control, the receiver transmits the remote control code to the controller via output 1. If the user presses key 2, then the second Wiegand output on the receiver is enabled and so on. Important: the remote controls also have a 125 KHz or MIFARE® 13.56 MHz proximity tag. In both instances, the code etched on the remote control corresponds to the two prox. and HF technologies. As such, irrespective of which key is pressed on the remote control, the receiver transmits this MIFARE® code to the controller so that the access control user manages only one code on the screen for proximity and HF.

Key characteristics

  • Size (L x l x h) : 91 mm x 155 mm x 34 mm
  • Protection rating: IP67
  • Wiring: 2 wire power supply
  • Loop input (4) 4 wires + 2 Wiegand gnd output (4) 4 x 2 wires + 2 gnd
  • Operating temperature: -20°C to +60°C
  • Power supply: 12 to 24V = or ~/ 50mA consumption
  • Frequency: 868 MHz
  • Reception distance: Up to 100 m in open-field conditions
