Description

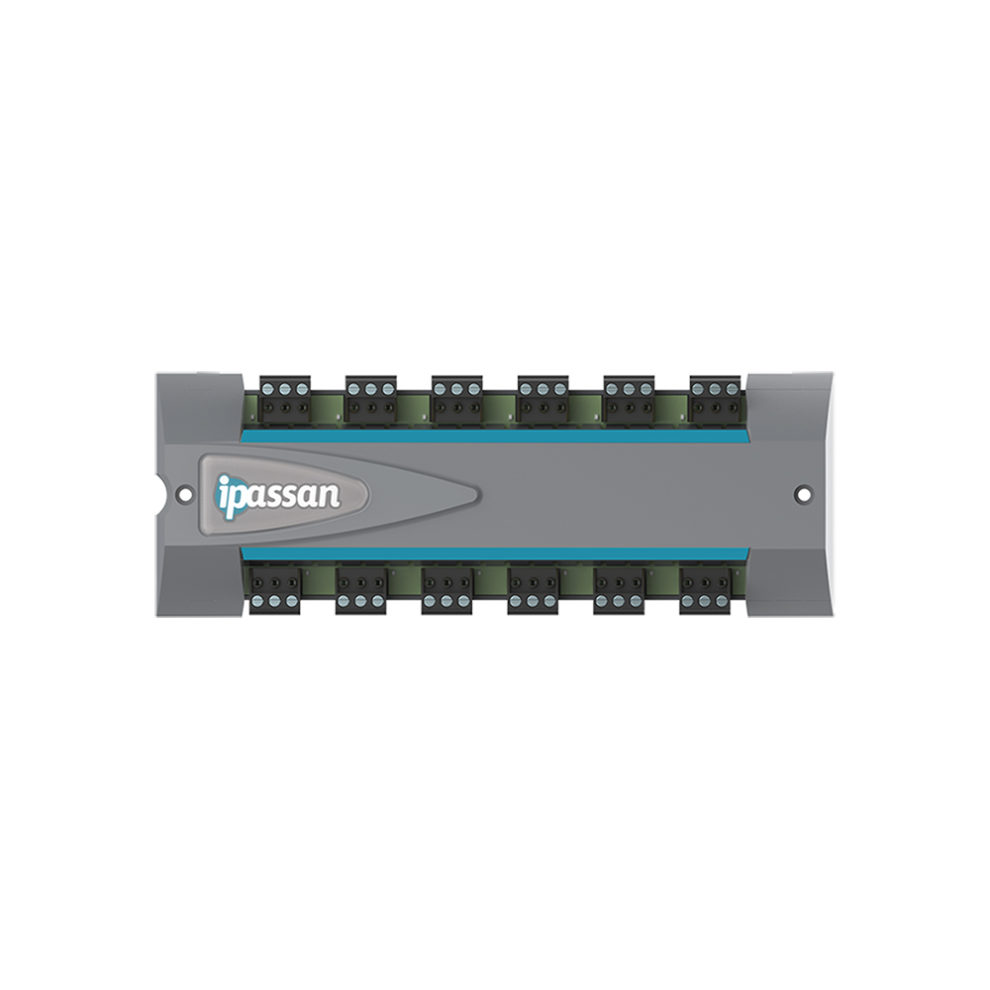

This extension option is used to manage 12 outputs. It connects to an iPassan controller, a 10-input or 10-output module, by just clipping it on top.
Perfect for managing lifts for example.
Key characteristics
- 12 relays capable of switching loads up to 5 amps.
- Can be easily added to a base controller or an extension card.
- Perfect for controlling lifts, lighting, etc.
- LED indicators showing input status
- Grey-coloured to recognize the product quickly in relation to the black iPassan base controllers
Power supply
Power is supplied by the base controller or the input module itself. No other power supply is required
Connectivity and extension system
The iPassan-proposed input solution can be easily and cost-effectively extended and offers an additional advantage of:
- 12 outputs to use in any programmable output
- When complemented by the 10-output extension card, it can reach a total capacity of 22 outputs per module.
- Additional devices easy to monitor, lifts, lighting, etc.
- No address configuration required.
Communication
The 12-output extension card just needs to be clipped on to the base controller or on to an extension card for it to communicate.
Technical characteristics
Power supply
Operating voltage: the power is supplied by the base controller itself. No other power supply is required.
Communication
Via connectors
Outputs
PGM outputs: 10 relays. 5A if 24VDC or 1A if 48VAC
Temperature
- Operating: -20°C to 50°C
- Storage temperature: -20°C to 70°C
- Humidity : 85 RH max
Size
- Size (L x l x H) : 198 mm x 70 mm x 30 mm
- Weight: 227g
